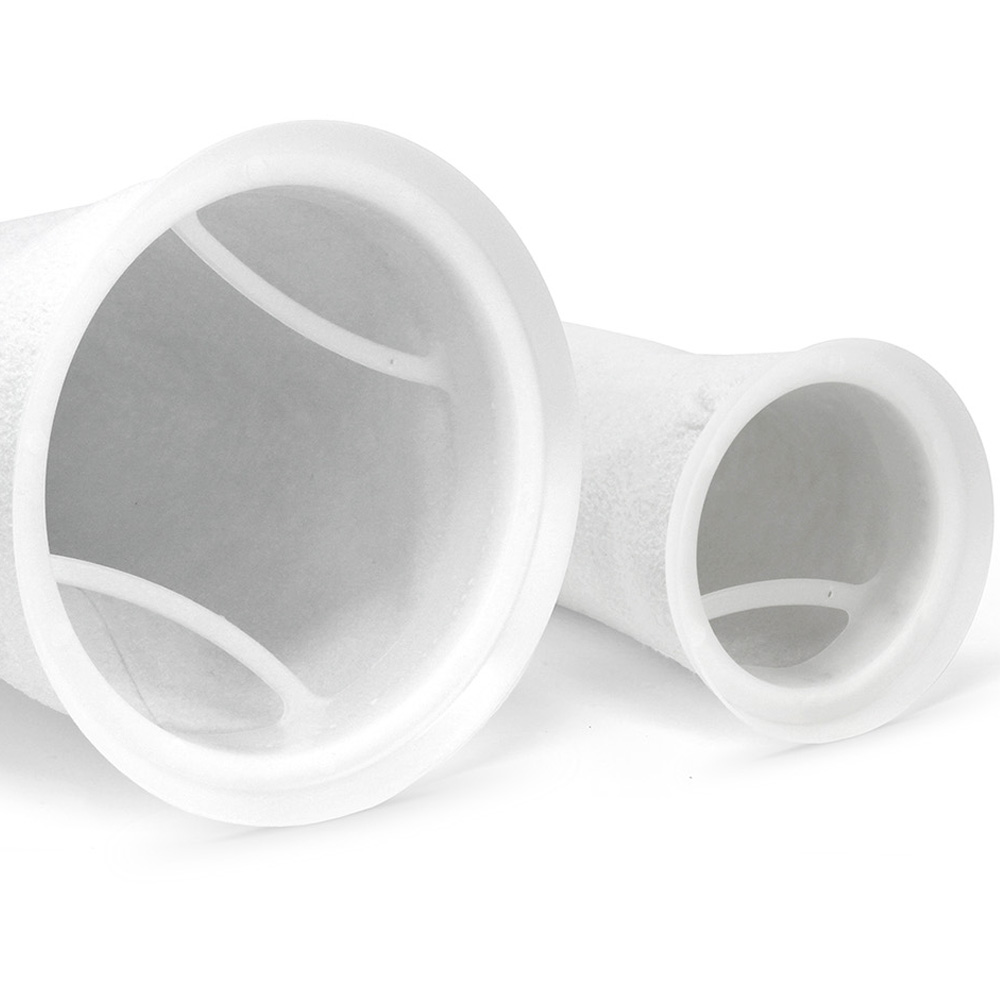

Plastic Ring Holt-melting filter bag

Using high-tech digital multi-point welding equipment, full welding process, eliminate the liquid side leakage phenomenon caused by needle seam, effectively avoid the leakage problem of needle eye, welding filter bag diameter more than 50 mm, arc position, middle seam, bag side, including the current general U-shape, cylinder (barrel) and other special shapes. Common filter bags of various specifications and sizes are made. After welding, the welding position is as soft and hard as raw materials. The same position can be welded up to 6 layers, and the side line can be locked at will as secondary insurance. It is suitable for the environment with higher precision requirements.

Description

Bottom style of hot melt filter bag

Round bottom, sharp bottom, ladder bottom

Product features

1. Filtration precision: PP 0.4-300 μ, PE 0.5-300 μ, NMO 25-2000 μ

2. Maximum working temperature: Polypropylene 90 ℃, polyester 150 ℃

3. Maximum pressure difference: 2.5bar

4. Replacement pressure: 0.8-1.5bar

5. The pressure difference of bag filter directly affects the flow rate. When the pressure difference is 0.2 MPa, a new filter bag must be replaced. The particle content and viscosity of the medium will affect the service life of the filter bag.

Model parameters of hot melt filter bag

01: ﹣ 180 * 430ml, filtration area: 0.24 m2, maximum flow: 20m3 / h

02: ﹣ 180 * 810mml filtration area: 0.48 M2 maximum flow: 40m m3 / h

03: ﹣ 100 * 230mml, filtration area: 0.08m2, maximum flow: 6m 3 / h

04: ﹣ 100 * 380mml filtration area: 0.16m2 maximum flow: 12m m3 / h

05: ﹣ 150 * 560mml filtration area: 0.24m2 maximum flow: 20m3 / h

Application field of hot melt filter bag

Petroleum, natural gas, electronics, beverage, water treatment, automobile manufacturing, paint, resin, chemistry, medicine, dyeing and coating, etc.
