Description

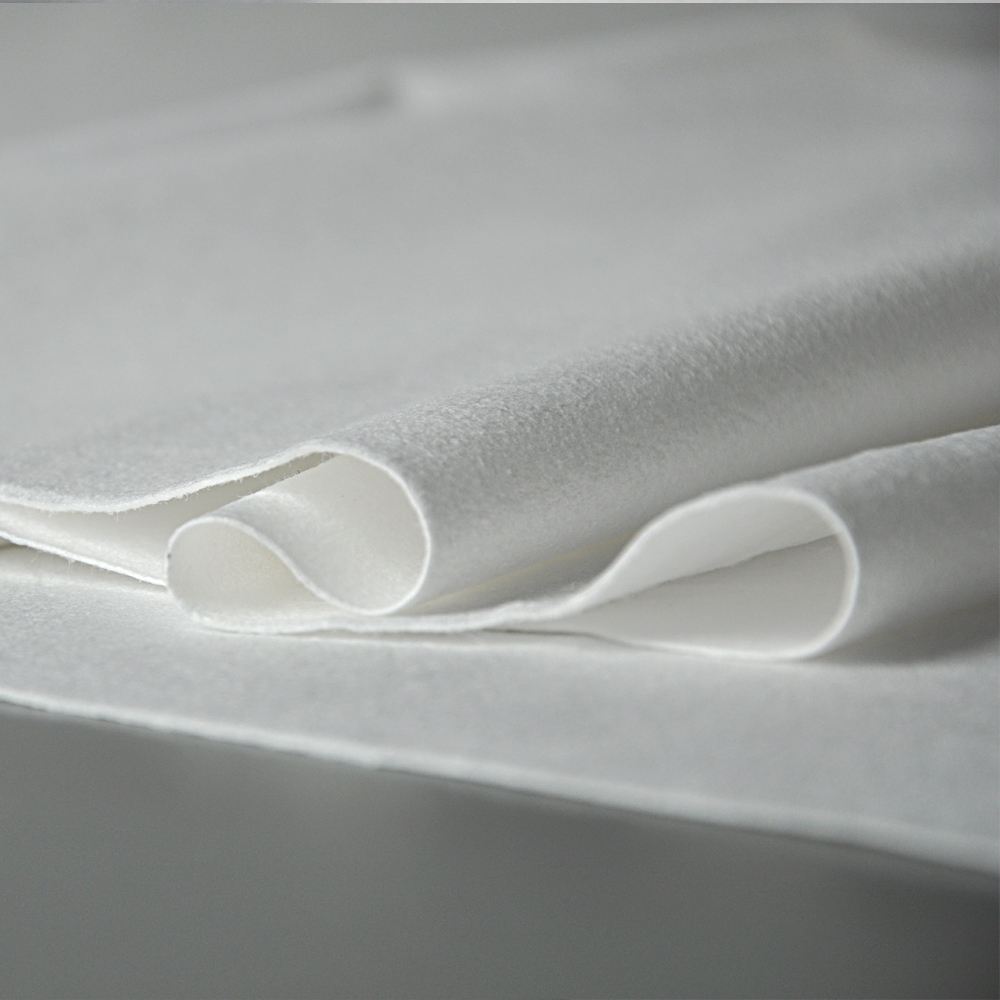

The operating temperature of polytetrafluoroethylene (PTFE) filter bag is 240 ℃ - 260 ℃. It has excellent chemical stability and heat resistance, strong acid and alkali corrosion resistance within pH value range, strong oxidant corrosion resistance, good hydrolysis resistance, good flame retardancy, insulation, heat insulation, light stability, low friction coefficient and low adhesion. PTFE filter material has excellent filtration efficiency, low and stable pressure difference and easy ash cleaning.
Maximum Continuous in Dry Conditions: 260°C / 500°F
Maximum Surge in Dry Conditions: 280°C / 536°F
Typical applications
Strong acid, strong alkali and other harsh occasions, commonly used in chemical industry, waste incineration and other industries
Technical parameter
Product name TF / tf1750-w
Fiber 100% PTFE
Substrate 100% PTFE
Weight per square gram 750g / m2
Thickness 1.1 mm
The density is 0.68g/cm3
Air permeability 100L / dm2.min
Breaking strength - longitudinal 650 n / 5cm
Fracture strength - transverse 600N / 5cm
Elongation @ 50N / 5cm - longitudinal 3%
Elongation @ 50N / 5cm - transverse 3%
Thermal shrinkage @ 260degc, 90min, 3%
Bursting strength 190n / cm2
Service temperature
Continuous working temperature 240 ℃
Instantaneous working temperature 260 ℃
After treatment, heat setting, burning and pressing
