Description
Polyester operating temperature is 130 ℃ - 150 ℃. Polyester has excellent insulation, wear resistance, high strength and good thermal stability. But polyester is easy to hydrolyze. It is stable for general organic solvents, good for weak alkali resistance and general for strong alkali resistance.
Maximum Continuous in Dry Conditions: 150°C / 302°F
Maximum Surge in Dry Conditions: 160°C / 320°F
Typical applications

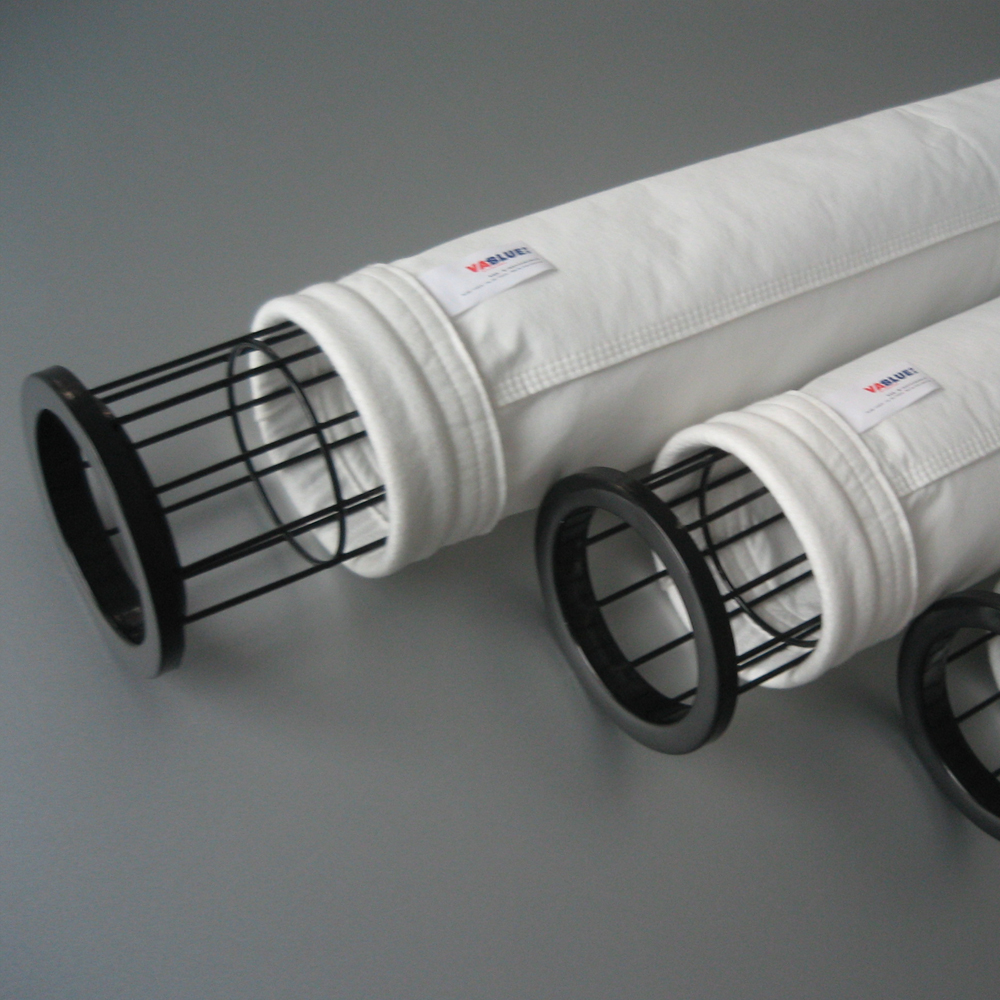

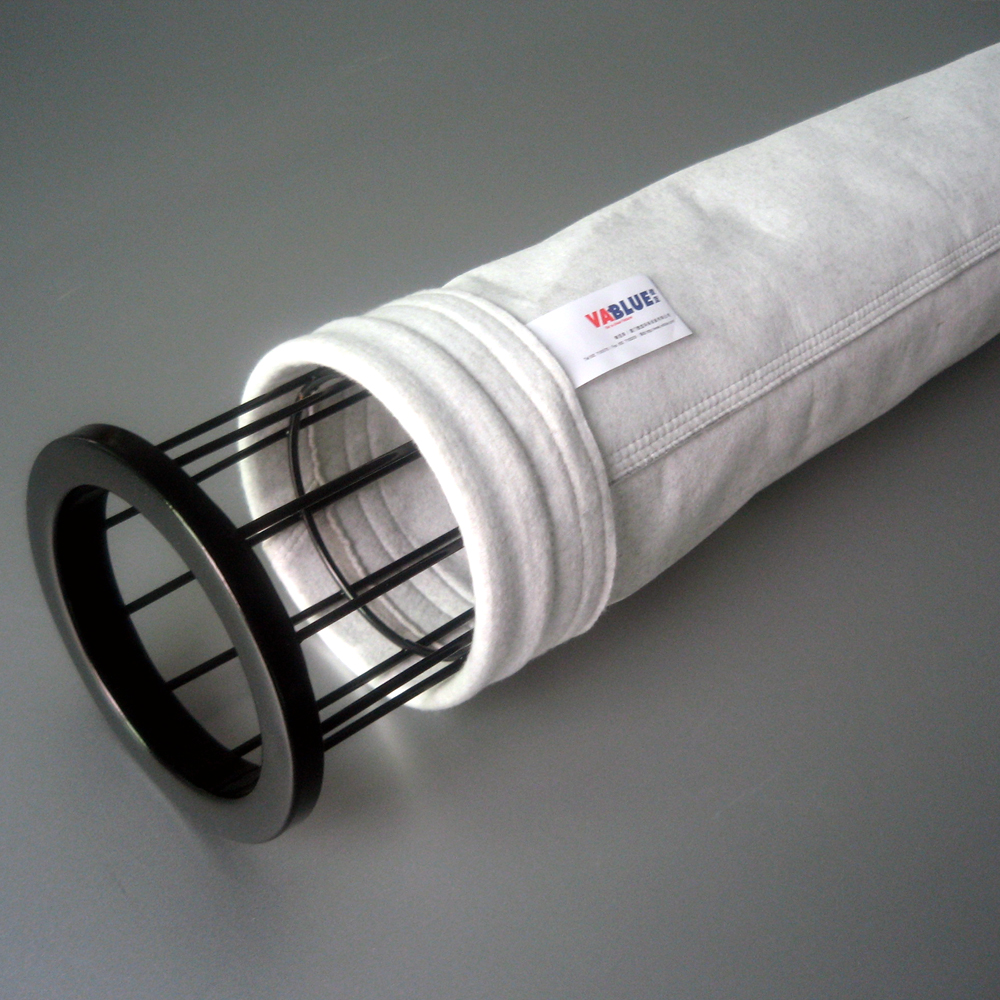

Polyester is widely used in iron and steel metallurgy, machinery manufacturing, cement industry, wood processing and other fields of dust collection process.
Technical parameters:
Product name PE / PE a500sg
Fiber 100% pet
Base cloth 100% pet
Weight per square gram 500g / m2
Thickness 1.7mm
29g / cm3
Air permeability 130L / dm2.min
Fracture strength - longitudinal ≥ 1200 n / 5cm
Fracture strength - transverse ≥ 1500N / 5cm
Elongation @ 200N / 5cm - longitudinal ≤ 5%
Elongation @ 200N / 5cm - transverse ≤ 5%
Thermal shrinkage @ 150degc, 90min ≤ 1%
Blasting strength ≥ 300 n / cm2
Service temperature
Continuous working temperature 130 ℃
Instantaneous working temperature 150 ℃
After treatment, heat setting, burning and pressing
Note:
According to the need, the polyester filter bag can do the following post-treatment to meet the needs of different working conditions
Oil and water proof
Antistatic
Surface treatment of fine denier fiber
Film mulching
coating
